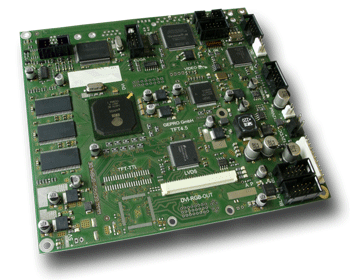

TFT 4.5
 |
Datenblatt TFT 4.5  |
Die wichtigsten Daten im Überblick:
- For easy plug+display connections of flatpanels to analog RGB- and DVI sources
from VGA up to SXGA (1280x1024), [UXGA (1600x1200) with shrink] - TTL-input for CGA/EGA and others
- Optional Video (PAL/NTSC/[SECAM])
- NON-VESA timings possible (SOG, CSync, HV) with freely adjustable picture size
- Output for TTL and LVDS Displays up to SXGA (1280x1024)
- Optional Output VGA + DVI
- Colour dephts up to 24 bits
- Highest picture quality by improved scaling algorithm
- Simply Flatpanel configuration via jumper (no external software)
- Single 12V power supply
| INFO: Durch unsere eigene Entwicklung und Fertigung sind kundenspezifische Änderungen ab 1 STk. nach Absprache möglich. Preise auf Anfrage! |
Technische Daten:
- One product for different resolution up to SXGA (1280 x 1024)
- Color depths up to 24bits
- Input Voltage: 8-25V (Backlight voltage = Input voltage)
- Sync-Input with SOG, CS and separate H+V
- analog-RGB: 15 pin HD-SUB VGA-Connector, 10pin IDC-Connector
- TTL-RGB (I): 10pin IDC, 9pin DSUB
- DVI: DVI-Connector, 16pin IDC-Connector, Video: FBAS (max. 6), Y/C (max. 2)
- Advanced Scaling, horizontal/vertical zoom and shrink (native 1:1, Aspect,
User Maximum) - Adjustable Picture-Size (freely)
- On-Screen Display, 4-button user interface, OSD control for all features
- Optional IR-Remote
- High power connector for power supply and backlight converter (12V and 5V)
- Cable-Kits for flatpanels
- Backlight dimming, analog + PWM
- I/O-Ports (max. 8) and 4-button for special use
- One I2C-Channel
- 2 AD-Channel (e.g. for potis)
- Dimensions: 160mm x 145mm
- Power supply: only 12V= +/- 10%
- Storage Temp. -25°C to +60°C
- Operating Temp. -10°C (-25°C) to +50°C
- Ambient Humidity 10 to 90% RH
- Storage Humidity 10 to 90% RH
 |
- auch als TFT-KIT lieferbar! |
|---|
